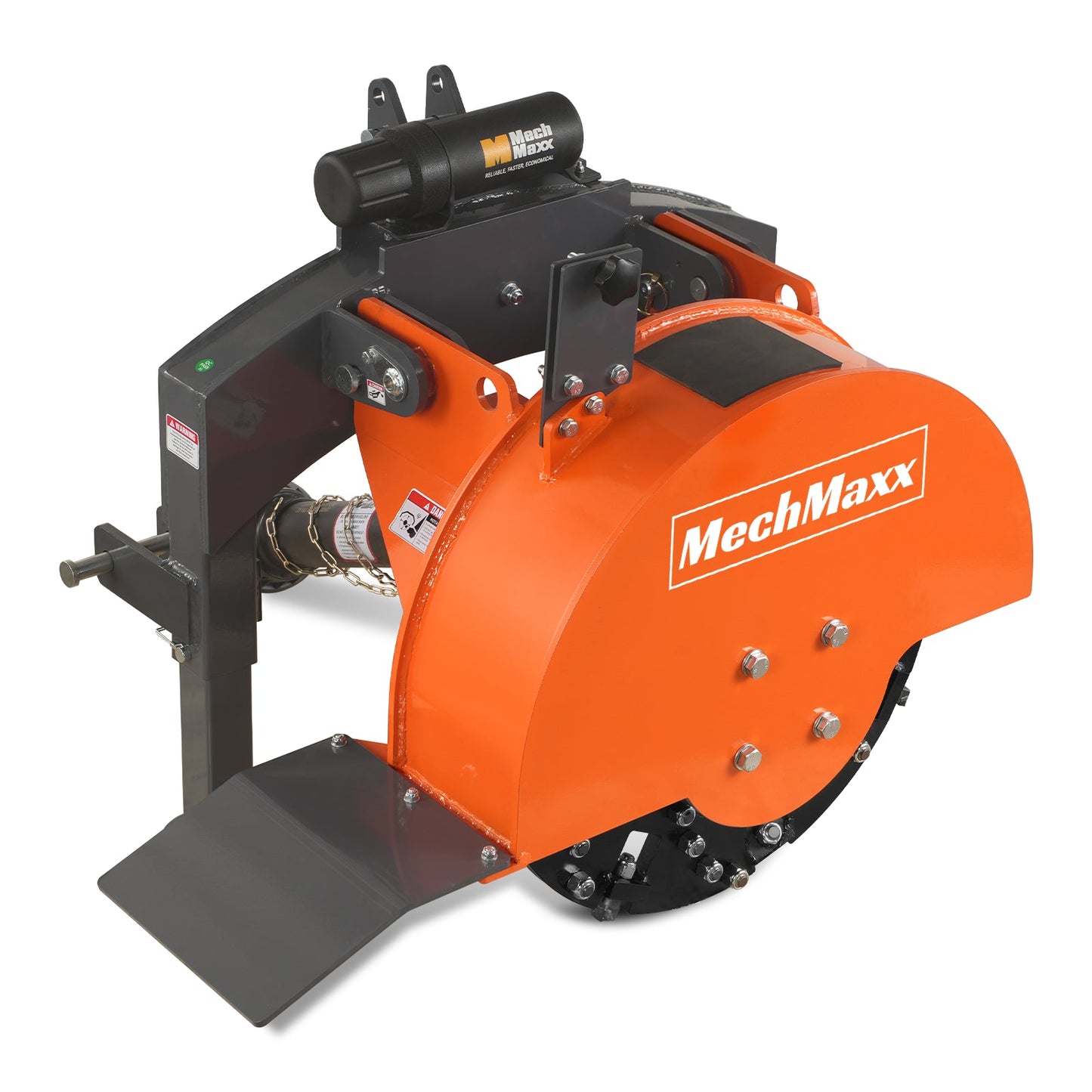

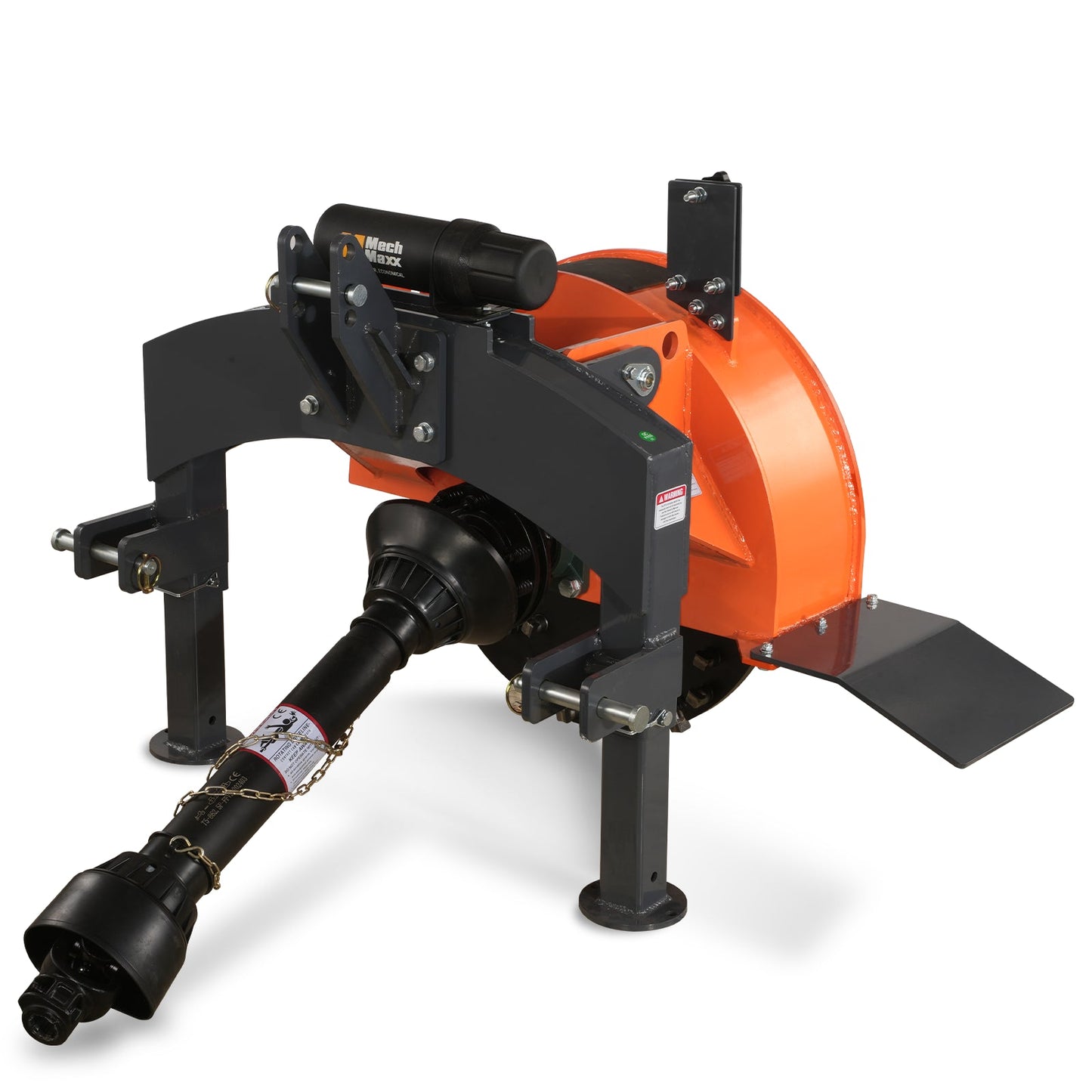

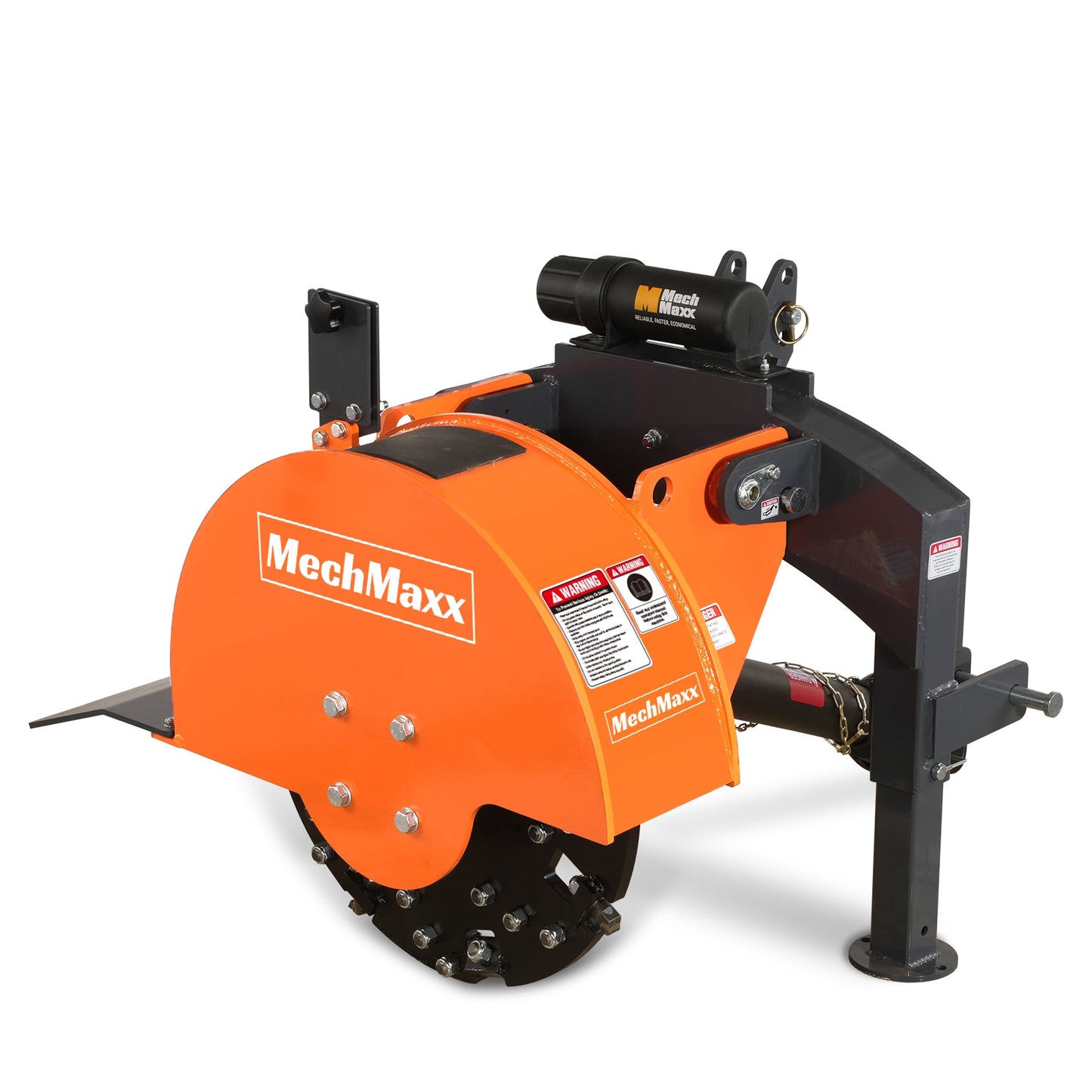

3-Point PTO Stump Grinder with 34 Carbide Teeth (PTO Shaft Included with Slip Clutch), for 15-45HP Tractor, SG24

Product Overview

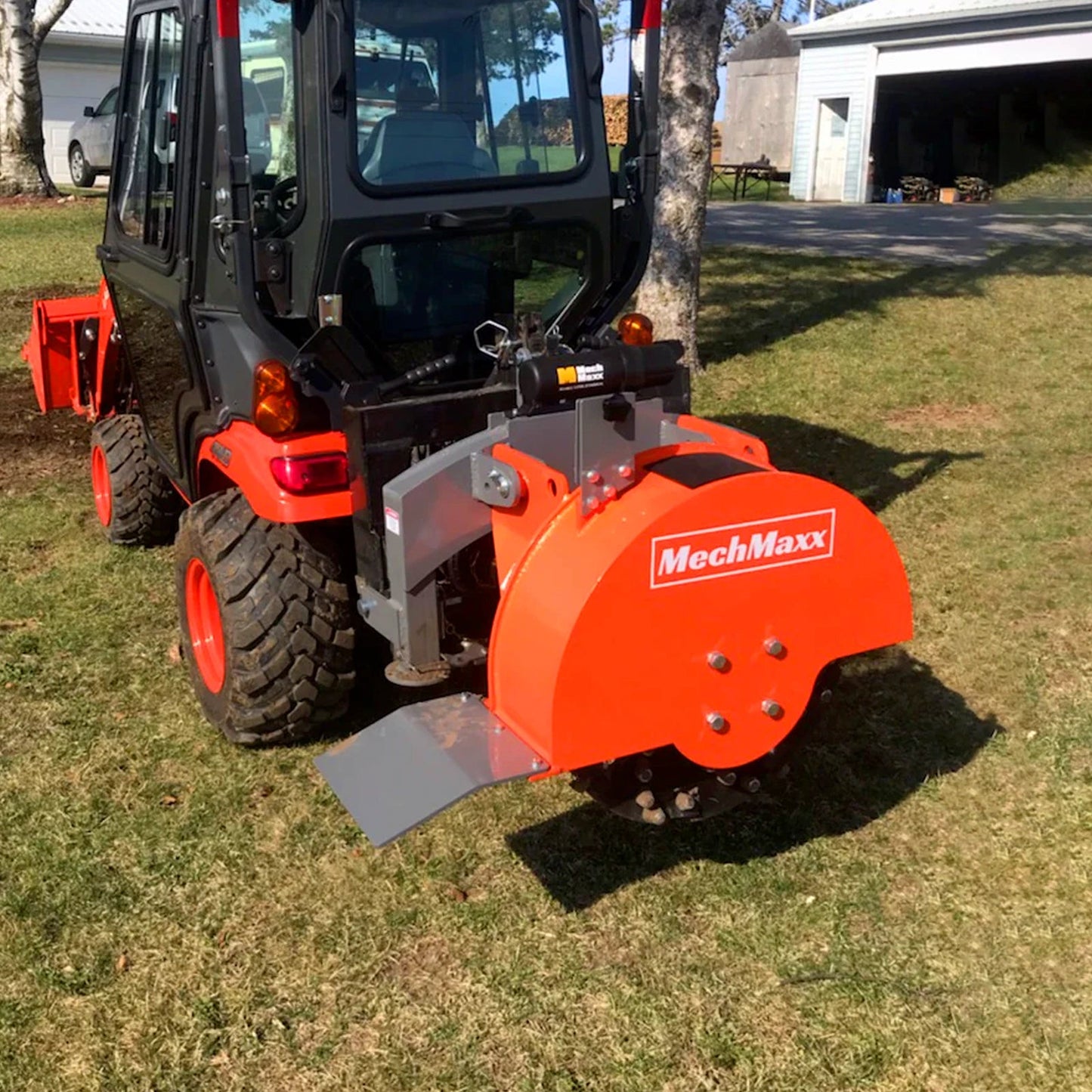

• Connects directly to your tractors 3 point hitch system and is equipped with a large 24’’ diameter solid steel grinding flywheel and 34 tungsten carbide cutting teeth to make the removal of tree stumps a breeze!
• These extremely rugged stump grinders are engineered to deliver optimal performance when paired with tractors containing 15-45HP at the PTO and will easily grind up to 6’’ below the ground to remove roots and prepare the ground for grading or grass.
• Designed to work on tractors with a PTO shaft. The stump grinder works best on tractors featuring PTO shafts that are independent of the tractors transmission drive system. This allows the operator to control the speed of the tractor independently and separately to the PTO speed.

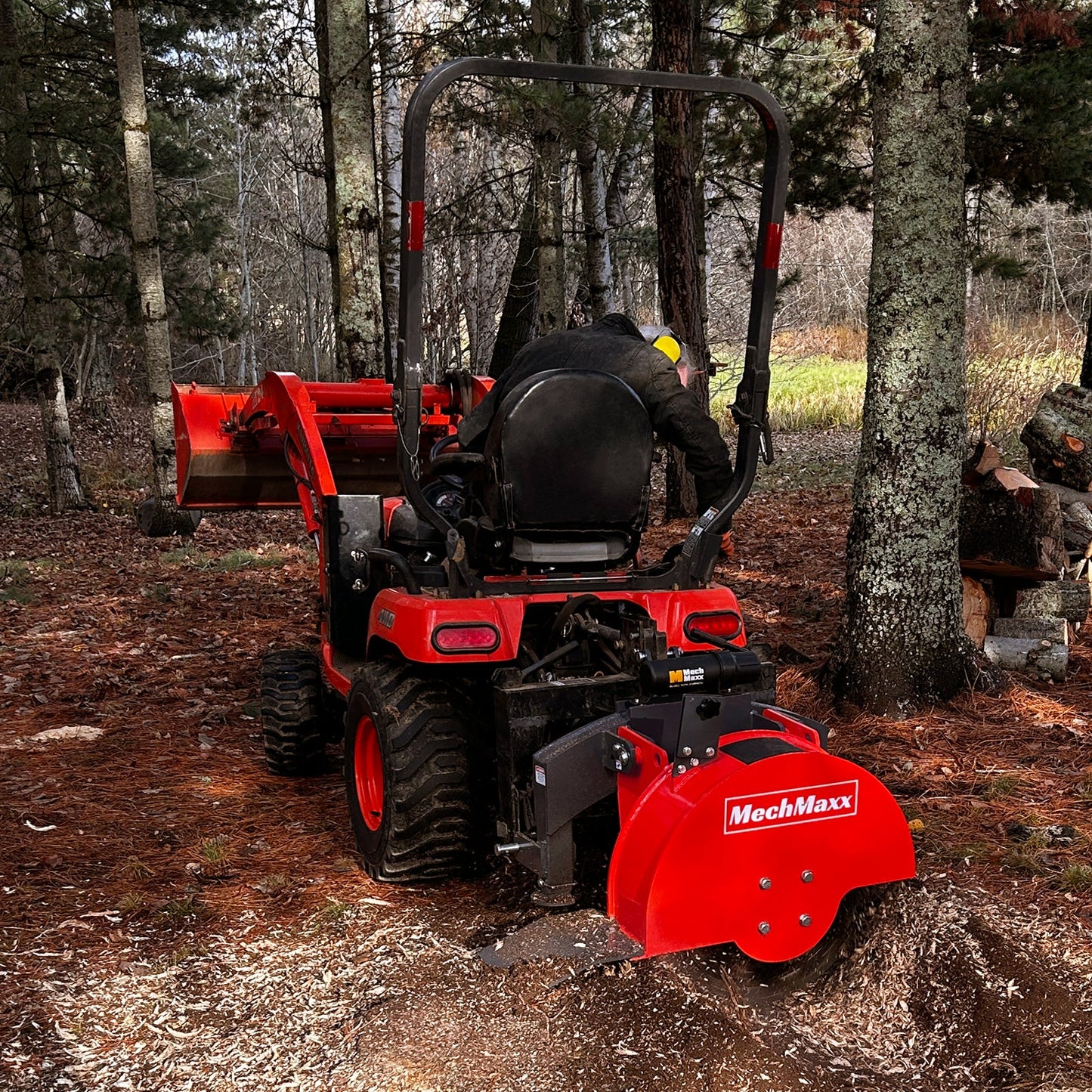

• Since the tractor pulls the grinder through the stump, the rate at which the tractor moves is important and should be independent of the PTO shaft.

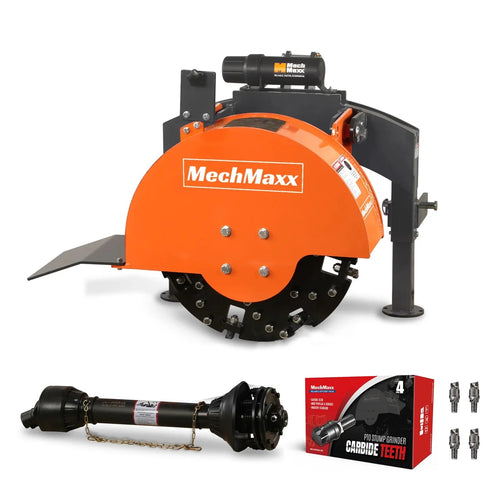

• PTO stump grinder with 34 teeth installed, plus 4 spare teeth included.

Product Features

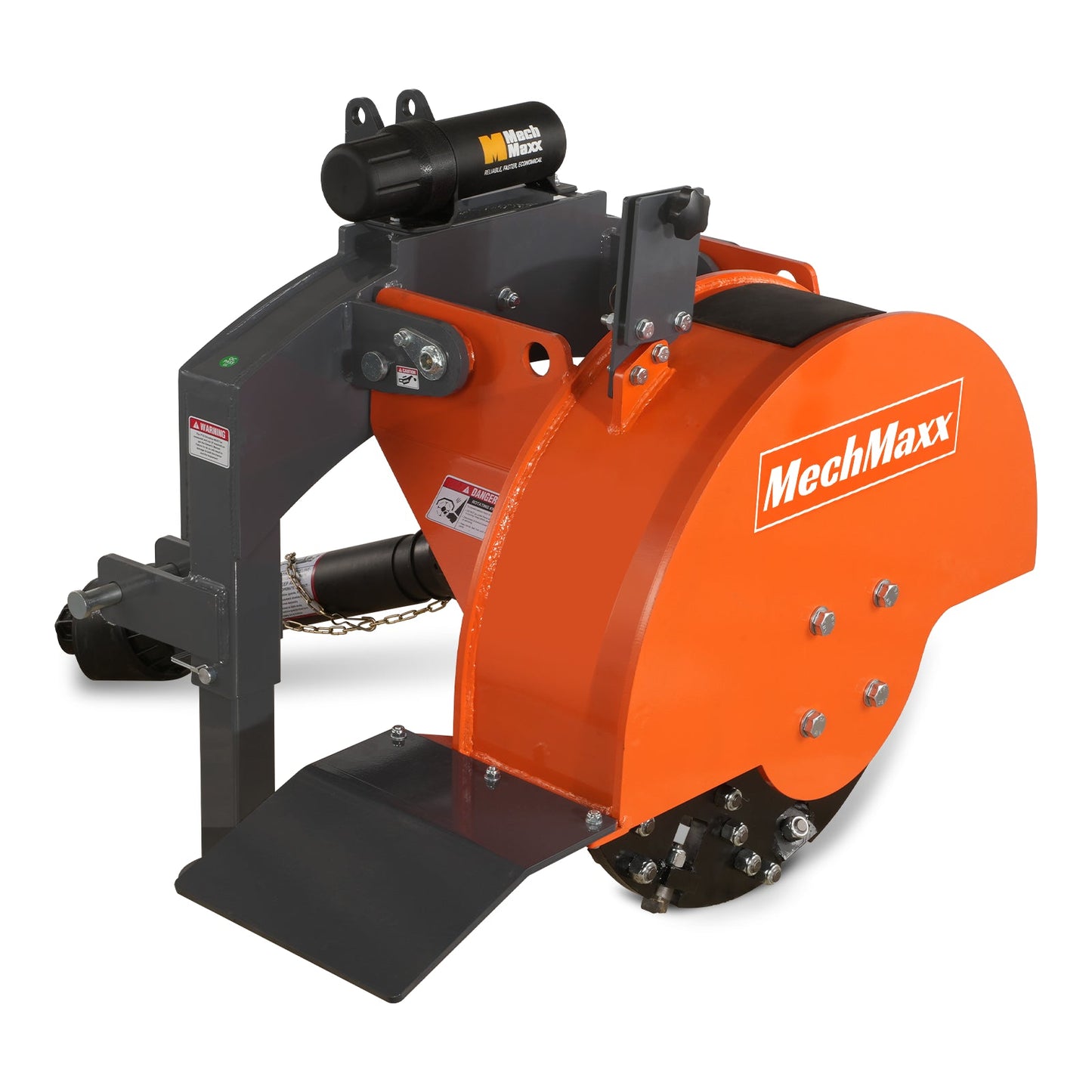

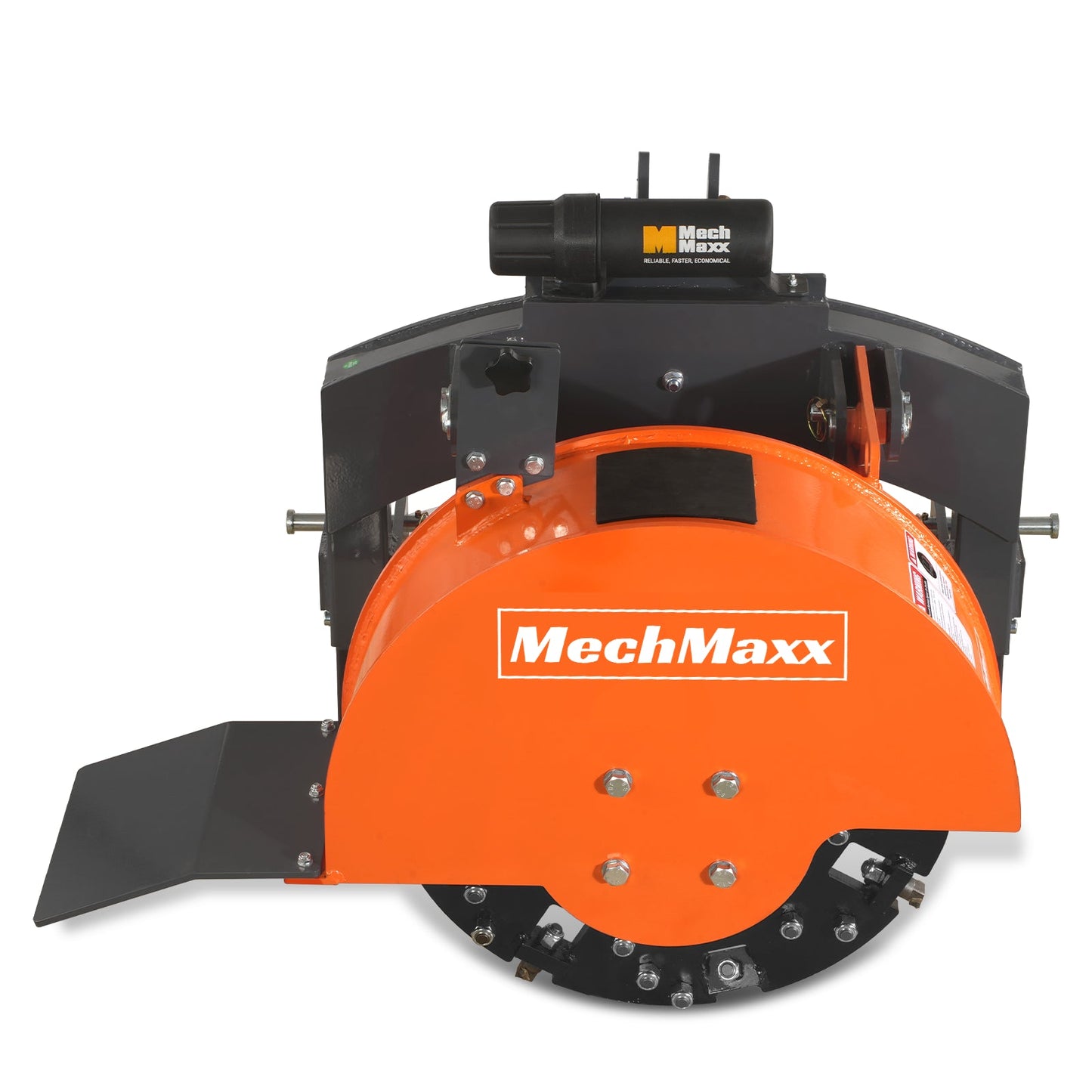

24 '' Flywheel Diameter

a large 24’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 24-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.

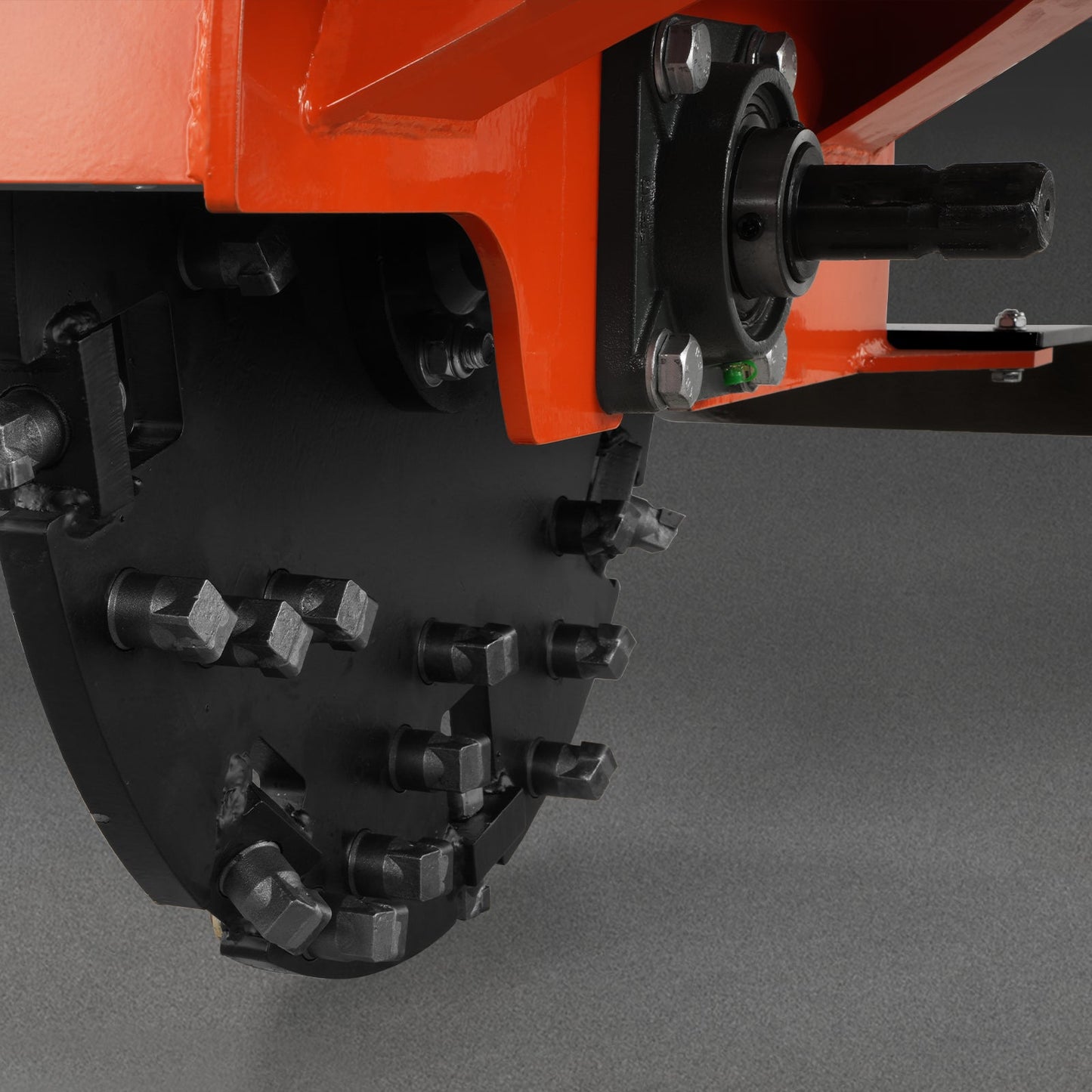

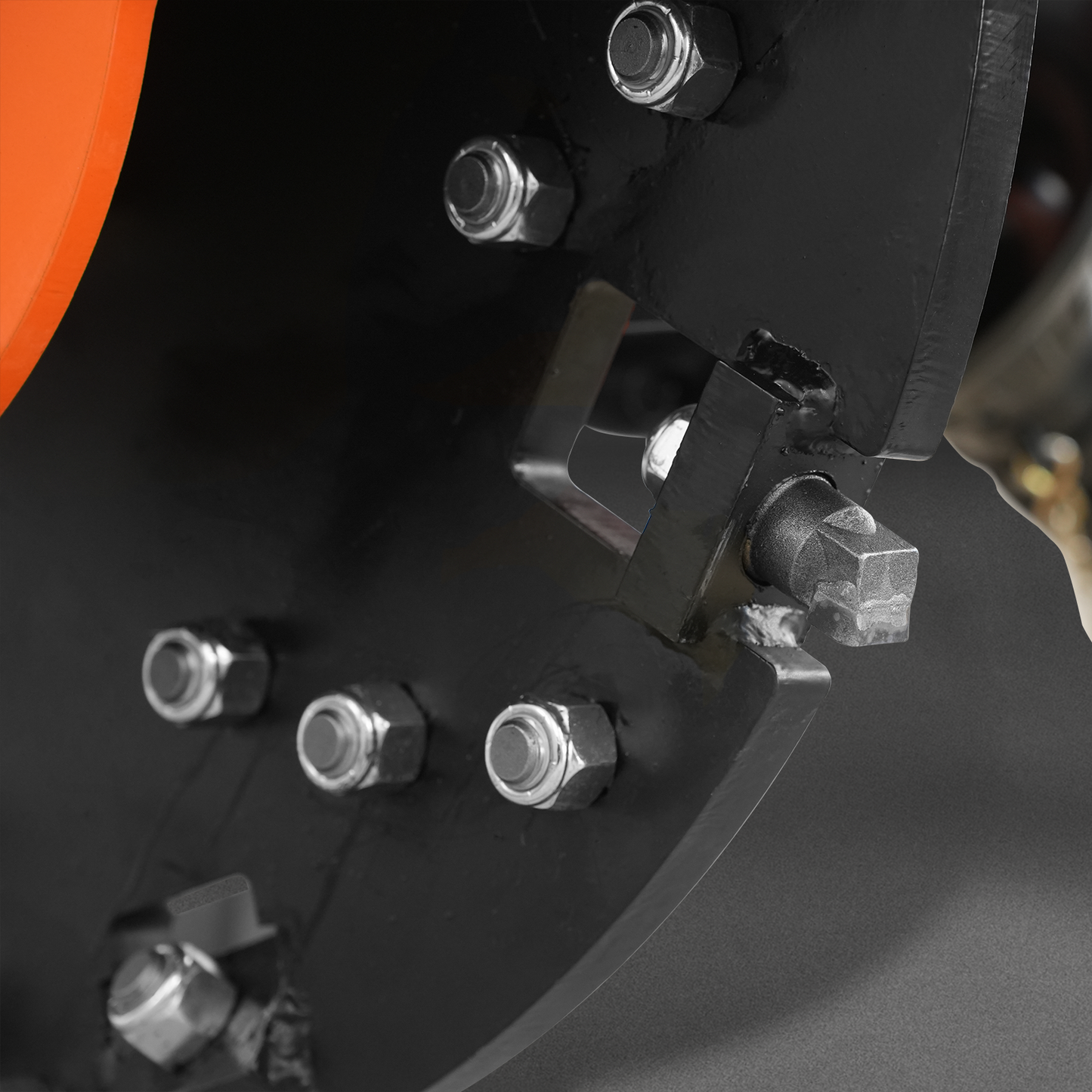

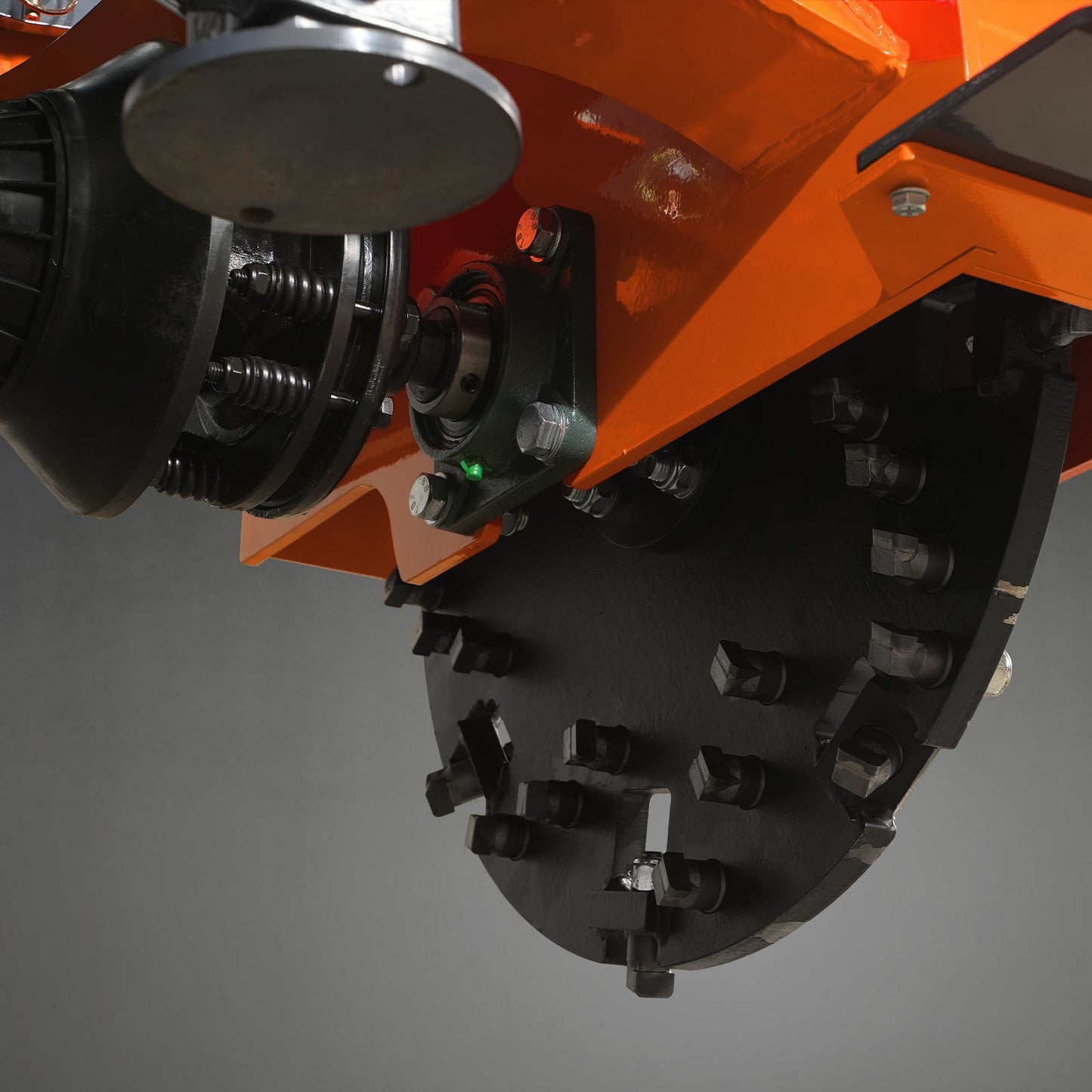

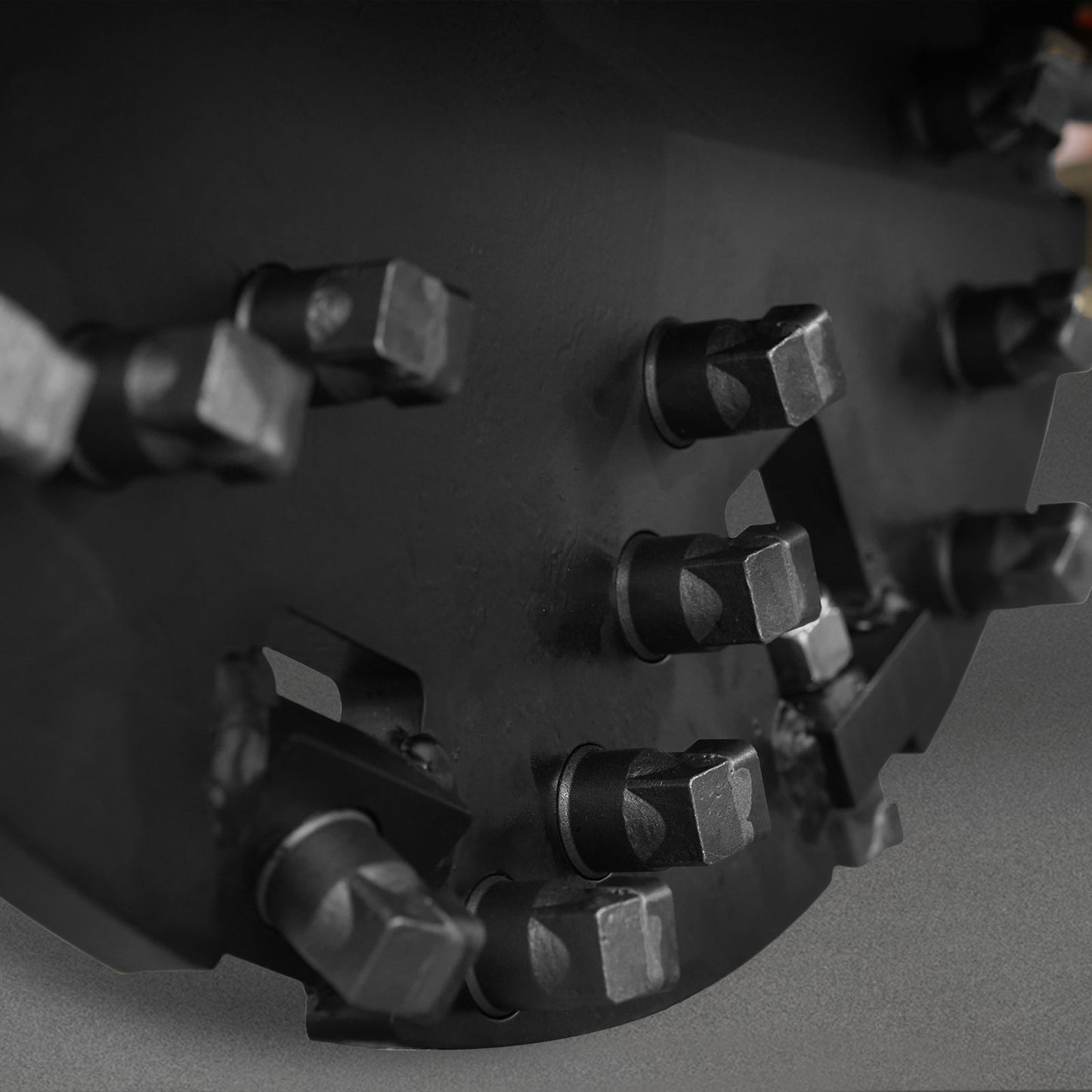

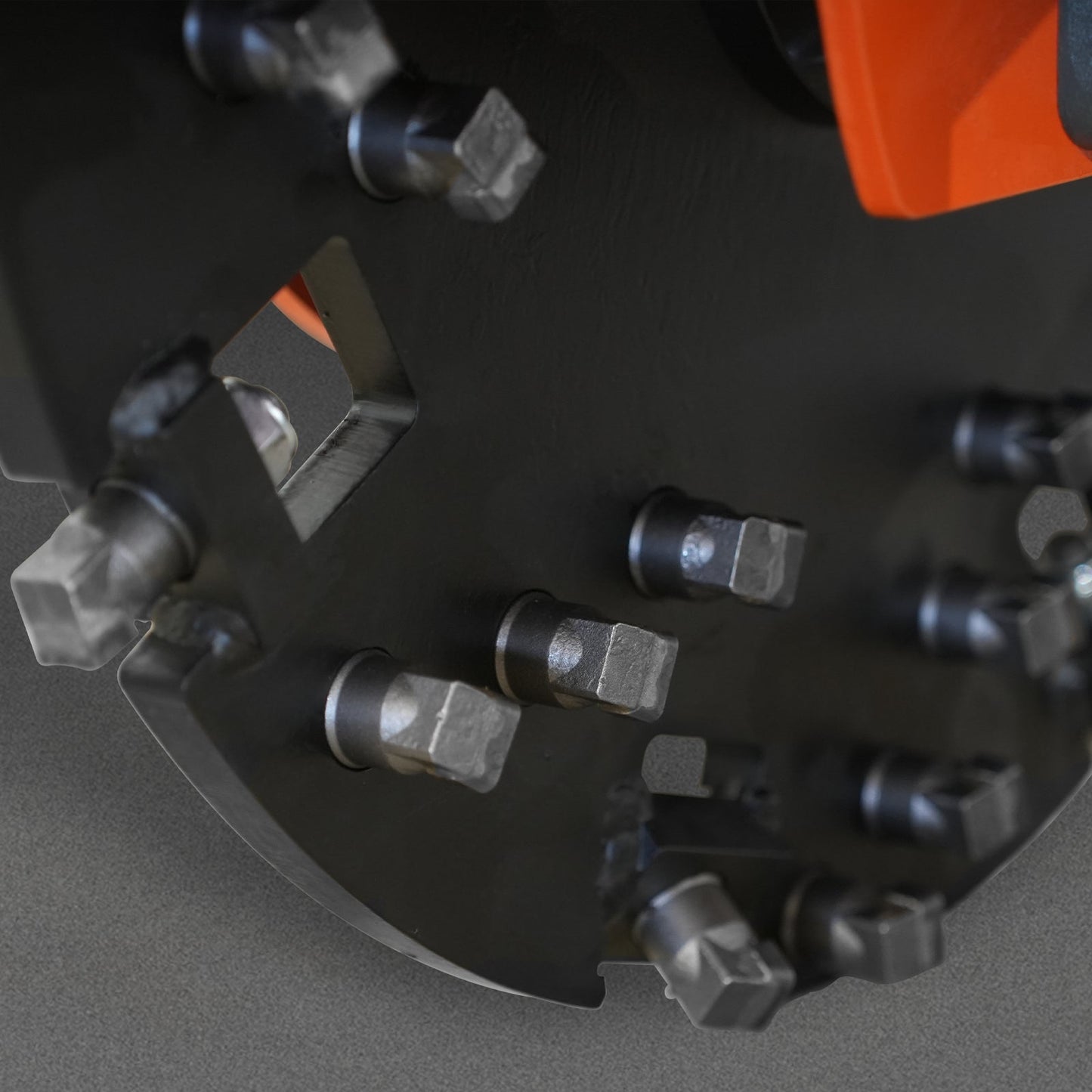

34 Tungsten Carbide Cutting Teeth

Equipped with 34 tungsten carbide cutting teeth that sharpen stumps quickly, speeding up work and making stump removal a breeze.

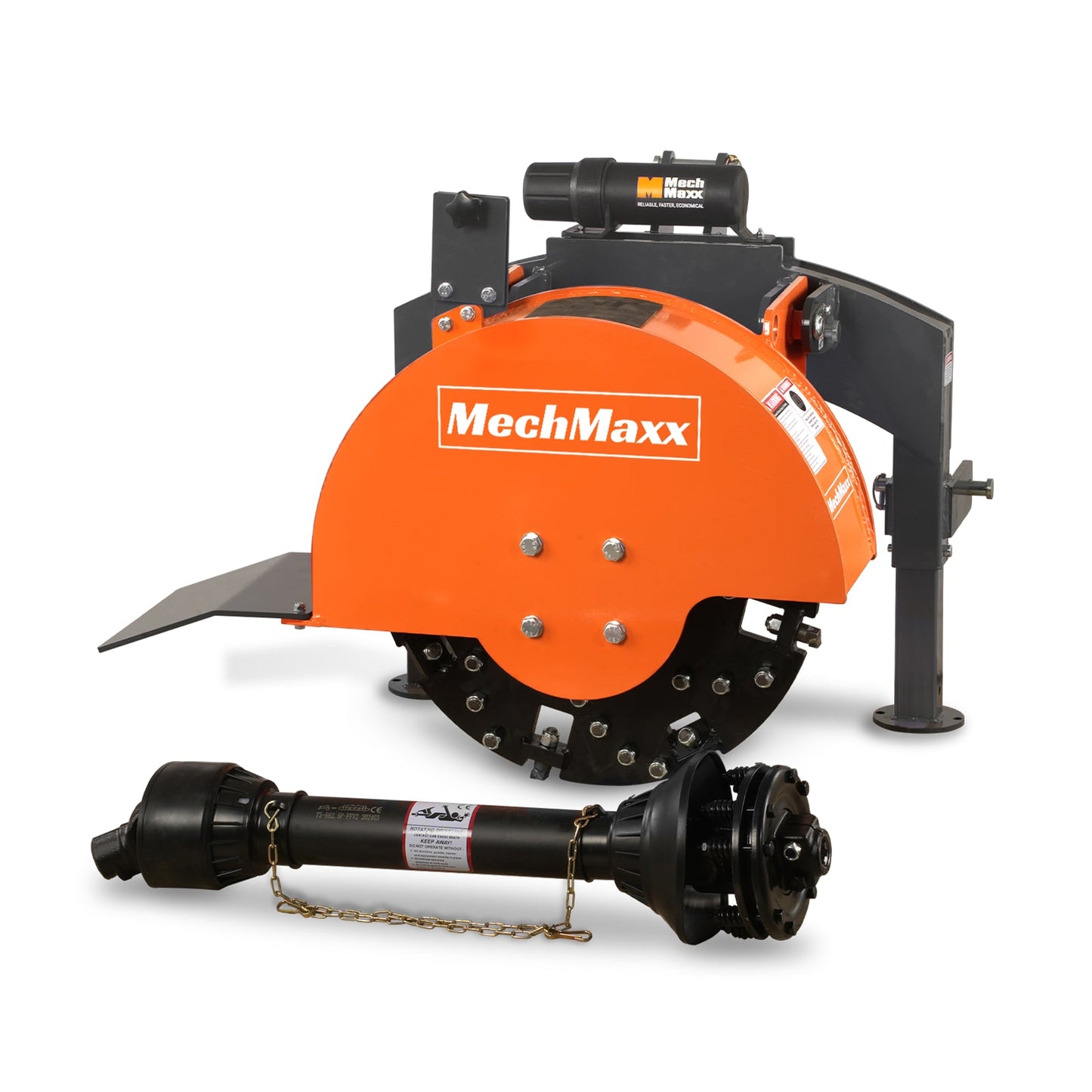

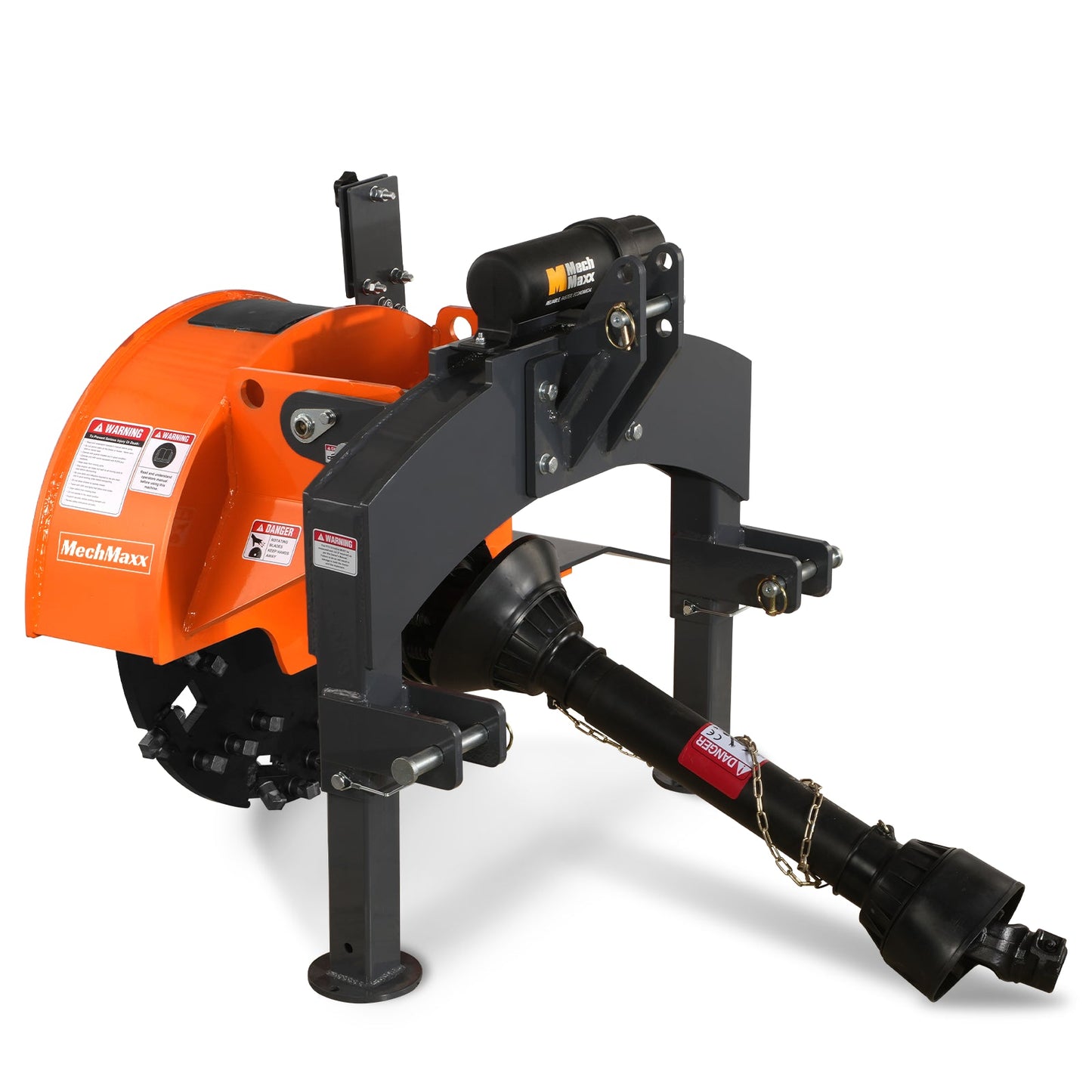

PTO Shaft

1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch. Compatible with reliable 540 rpm dedicated PTO drive power supply, ensuring efficiency and stable performance.

PTO Required

Extremely sturdy stump grinder engineered to provide optimal performance when used with tractors with PTO power of 15-45HP.

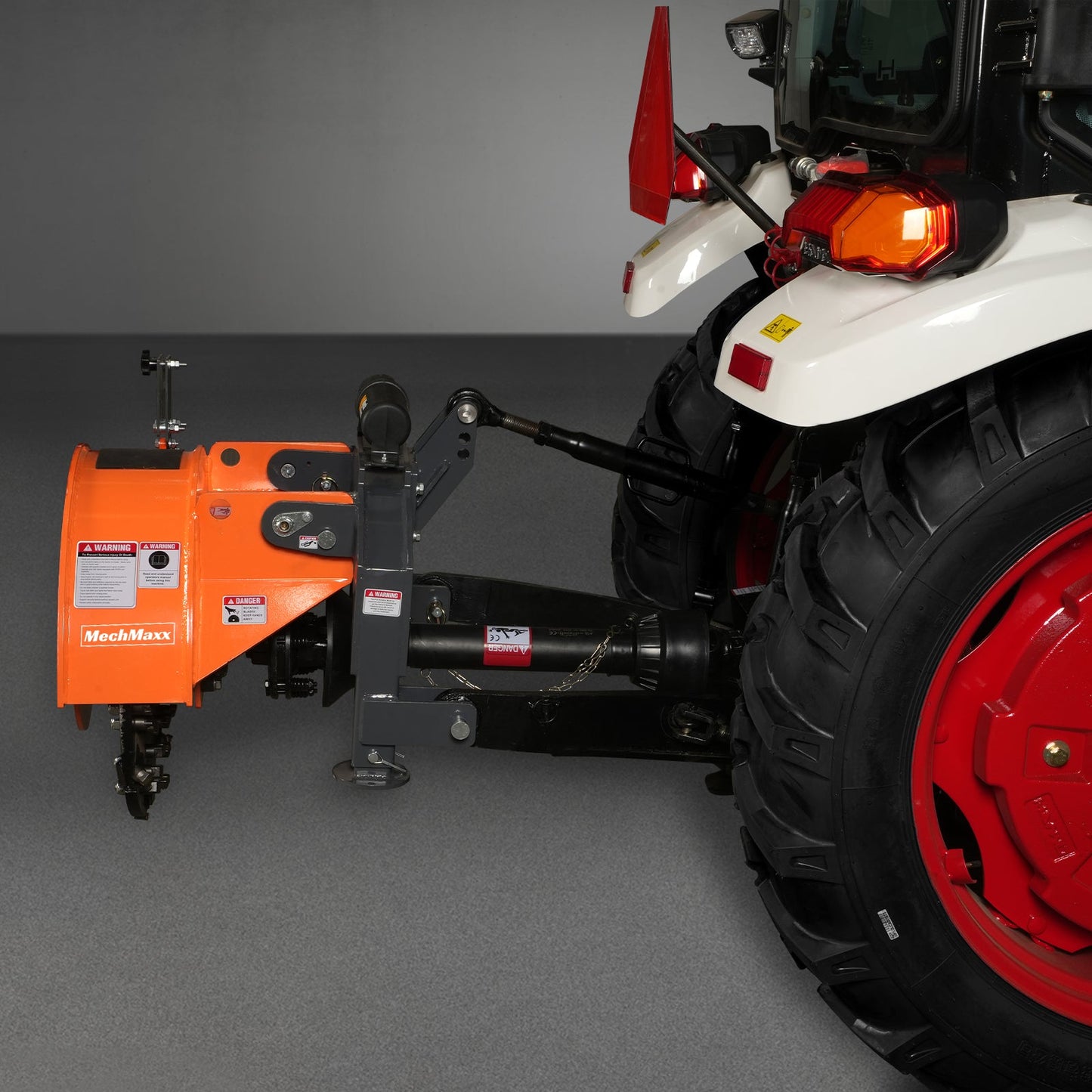

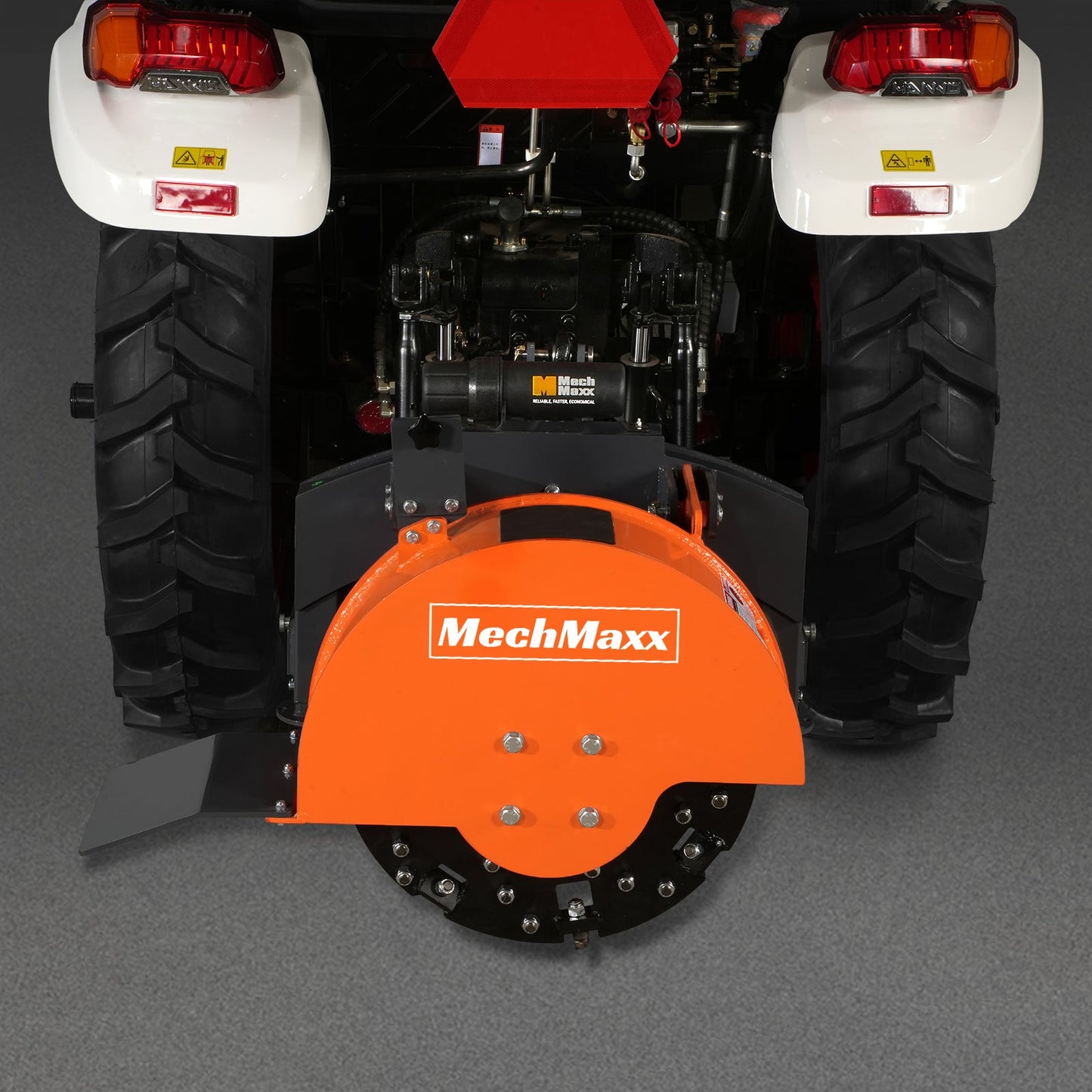

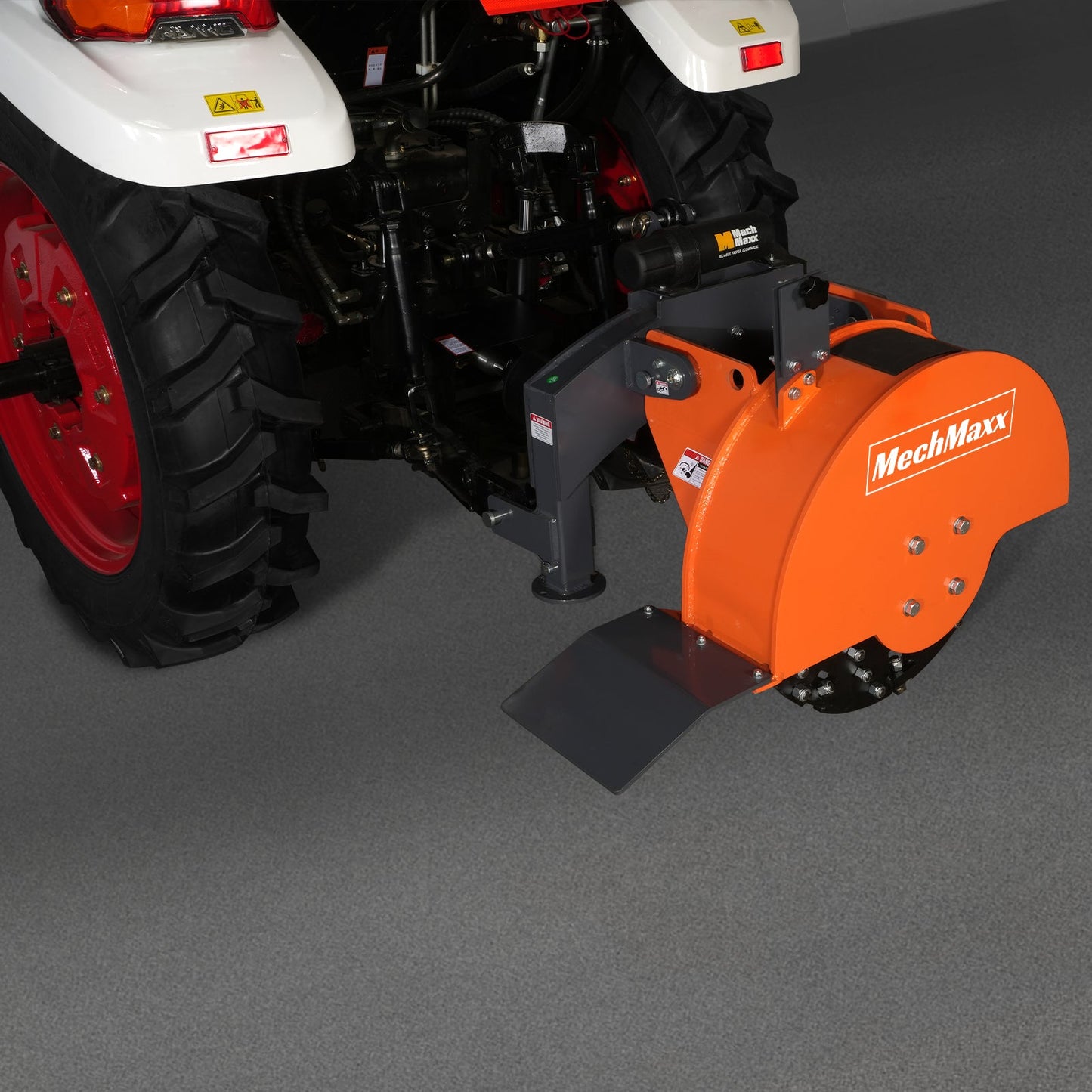

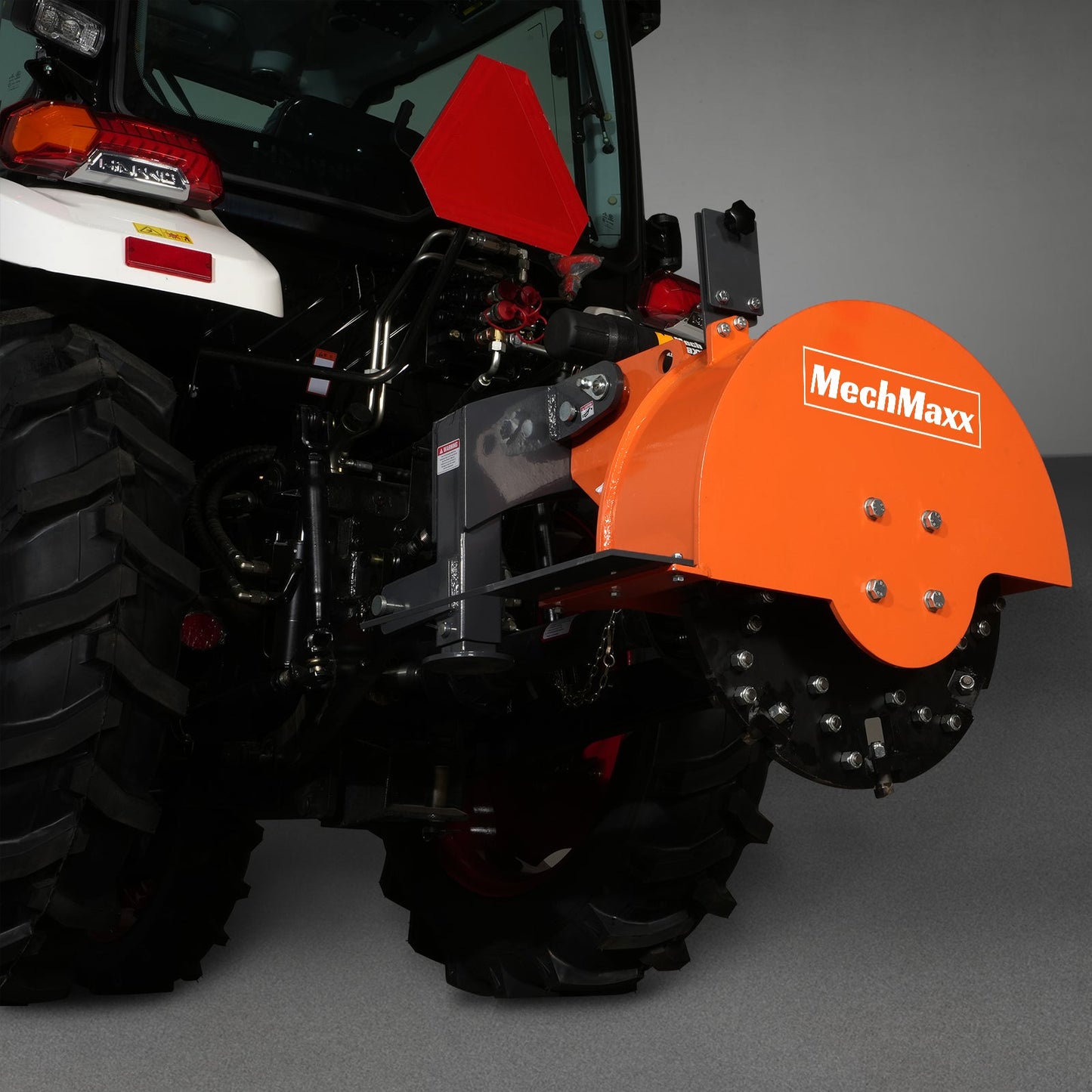

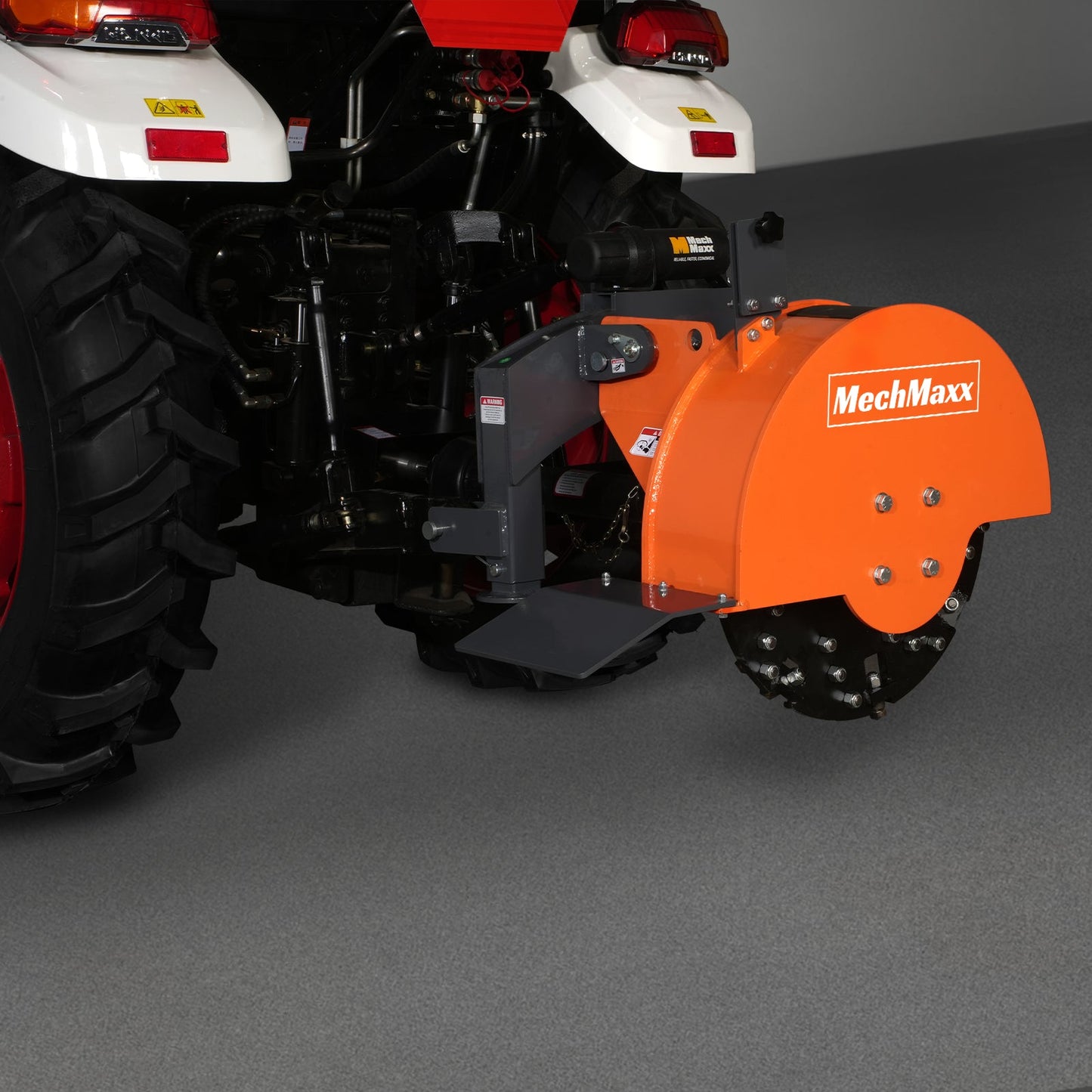

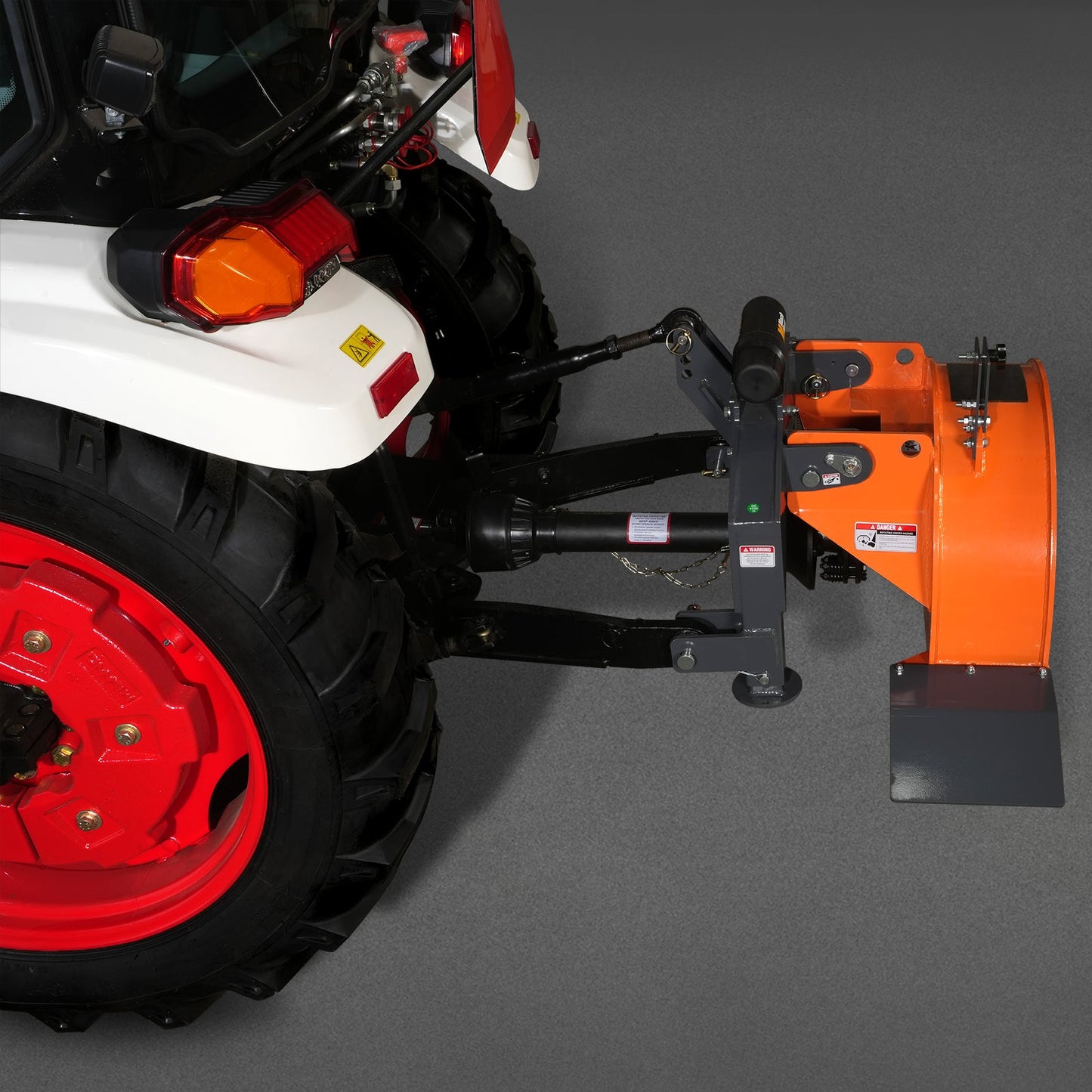

3 point hitch Cat. 1

The three-point connection ensures the stability of the root grinder connected to the tractor and remains stable when the machine is running, improving grinding efficiency and reducing working time.

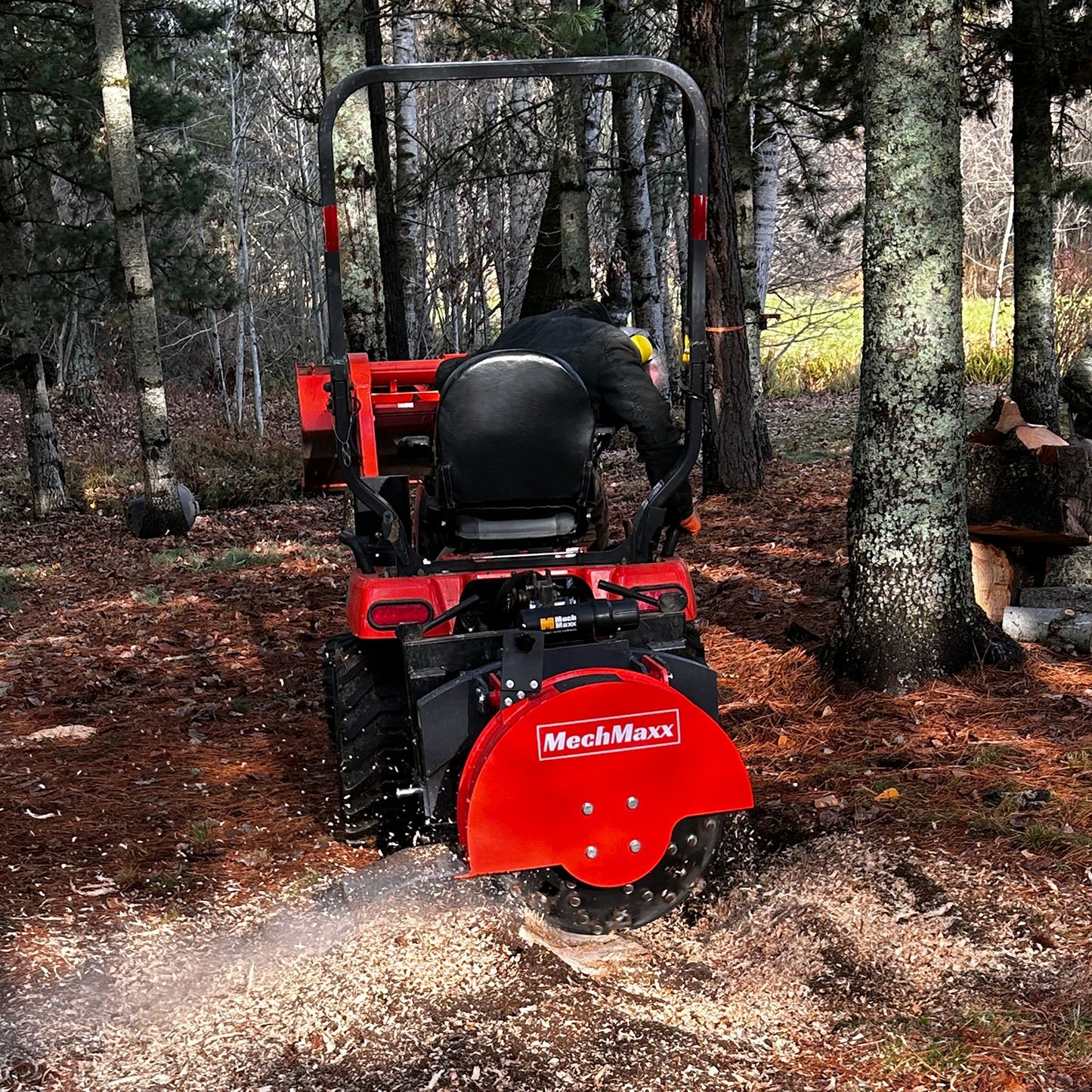

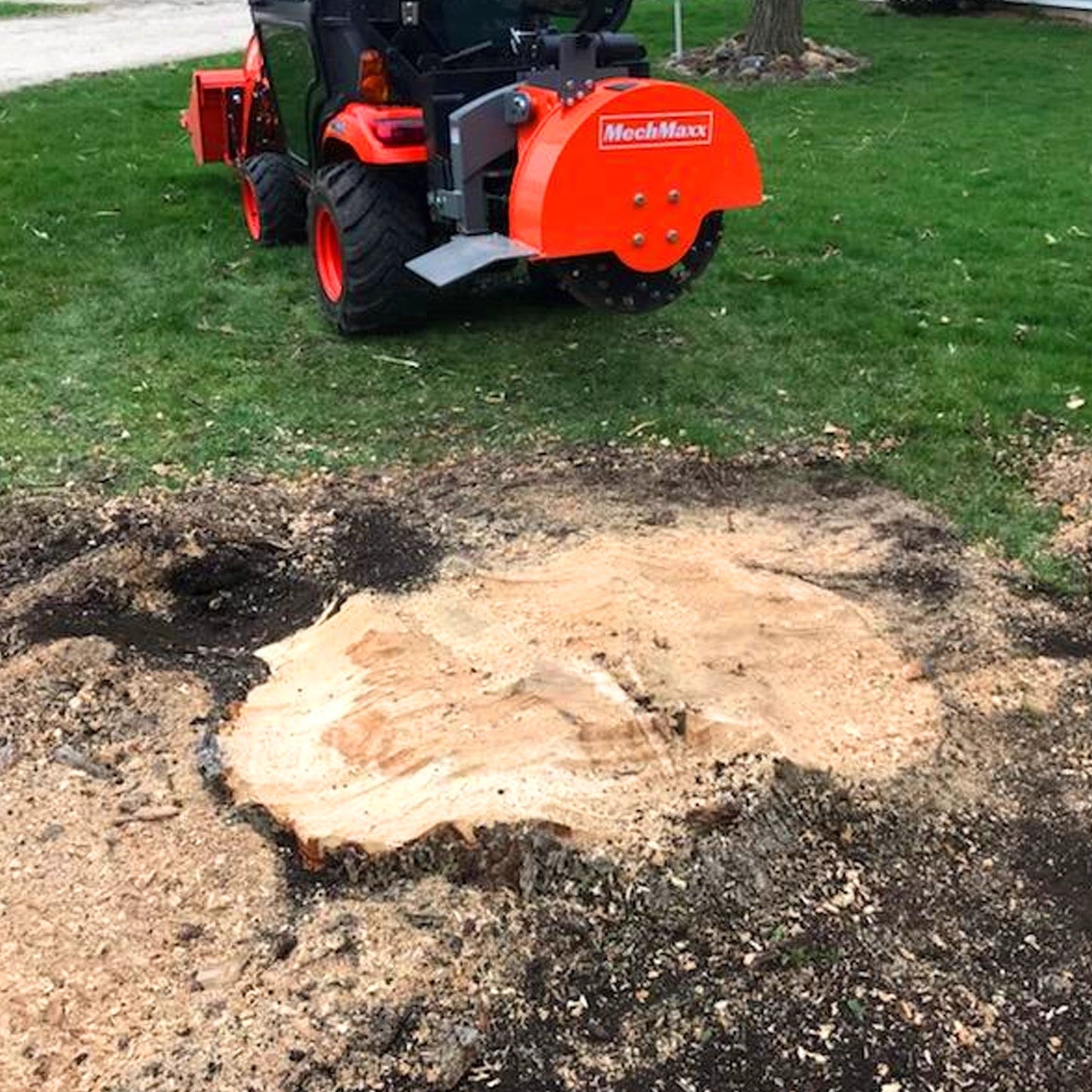

Cutting Depth

Easily grinds underground to a depth of 6 inches to remove tree roots and prepare for grading or lawn.

Specifications

Flywheel Diameter	24 in	Mounting	3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness	3/4 in	PTO Input	540 RPM
Carbid Tip	34 PCS	Max. Torque	1200 N·m
Carbid Tip Material	YG11C	PTO Shaft Weight	44 LBS
Tip Holder Material	42CrMo	Dimensions	29 × 37 × 38 in
PTO HP Required	15–45 HP	Packing	Iron Frame + Carton
PTO Shaft (Included Shipping)	1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch	Weight (N.W/G.W.)	450/563 LBS

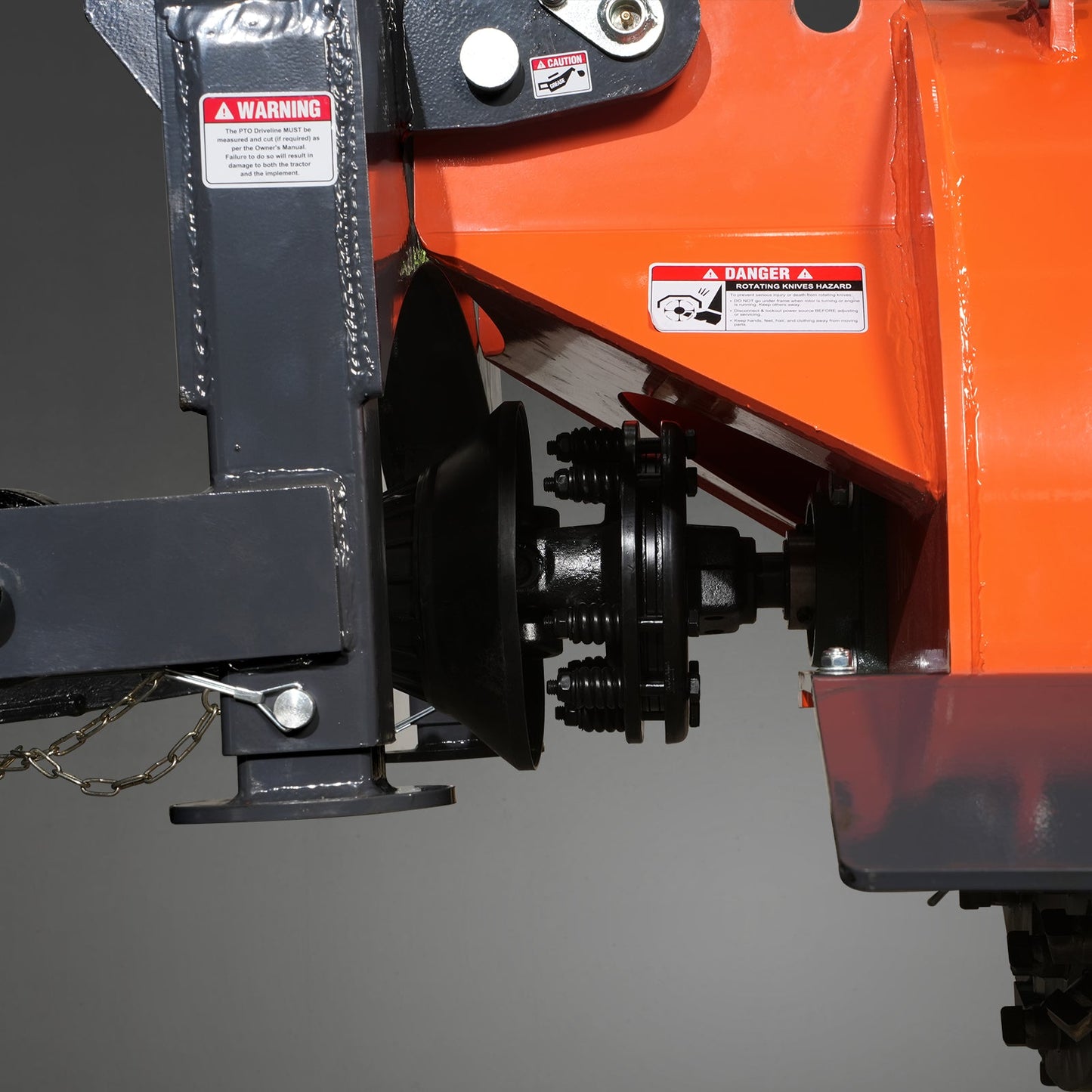

Friction Torque Limiter (Slip Clutch)	Included



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
